Case Study | Techase Special Screw Press for River Lake Silt

1.  Project Background

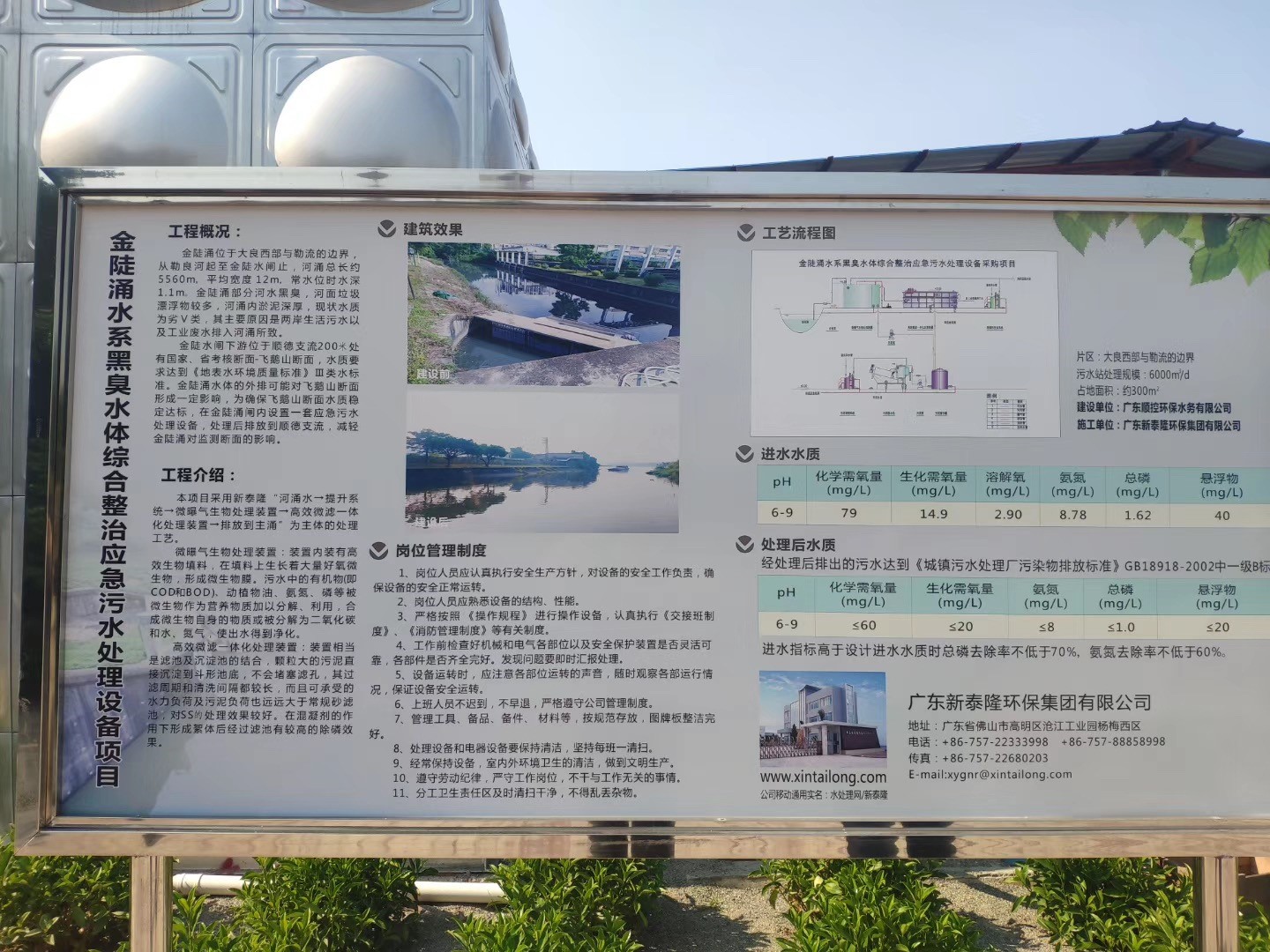

1.1 Name: Emergency treatment equipment project for comprehensive treatment of black and odorous water body in Jindouchong water system.

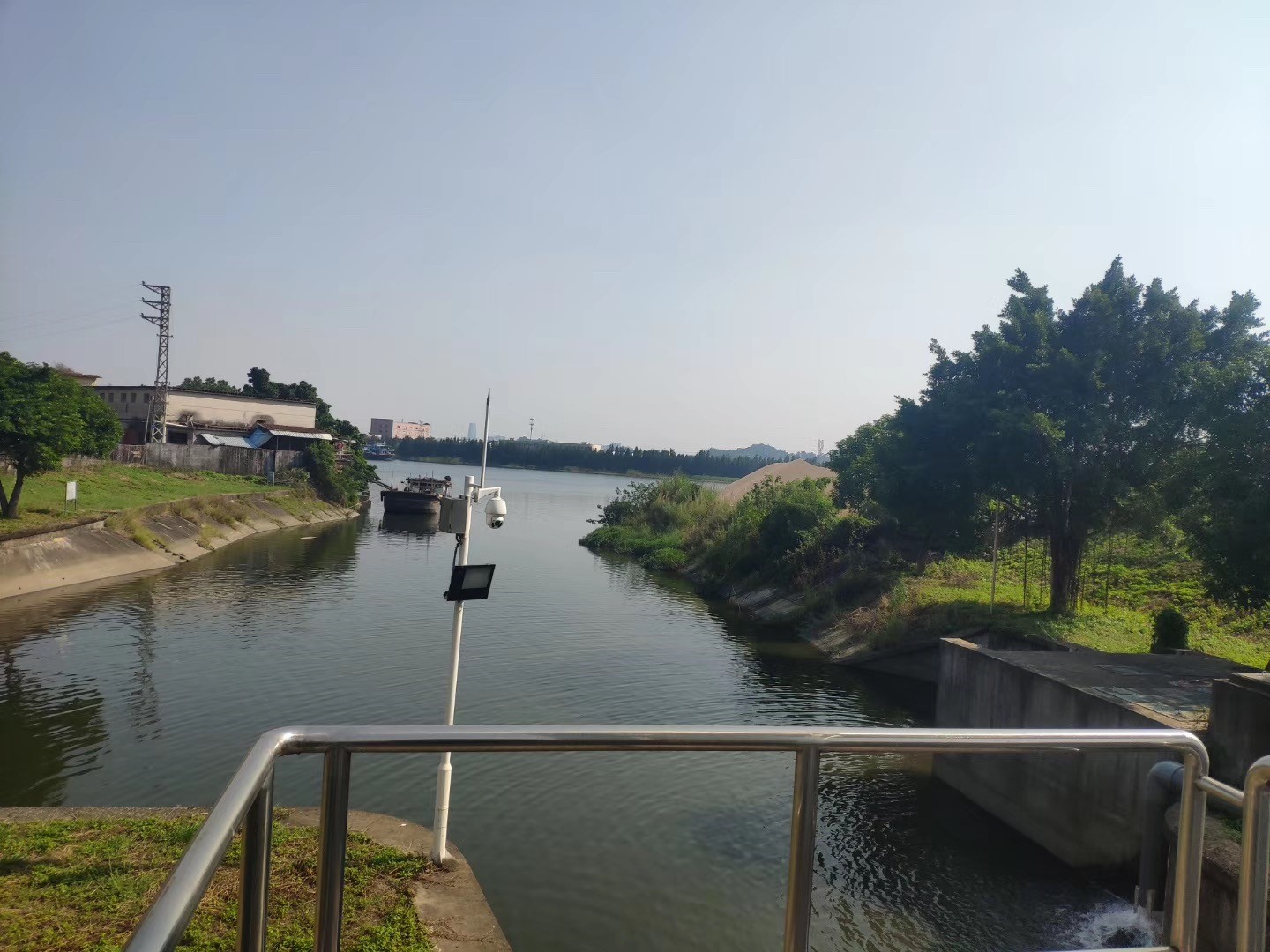

1.2 Project Overview: Jindouchong is located at the boundary between the western part of Daliang and Leliu, from Leliang River to Jindou Sluice. The total length of the river is about 5560 meters, the average width is 12 meters, and the water depth at ordinary water level is 1.1 meters. Part of the river in Jindouchong is black odor water, there are many garbage floating on the river surface, the silt in the river is thick, and the current water quality is inferior to Class V, which is mainly due to the discharge of domestic sewage and industrial wastewater from both sides of the river into the water system.

1.3 Inflow Quality

1.4 Outflow Discharge Quality

Outflow Discharged

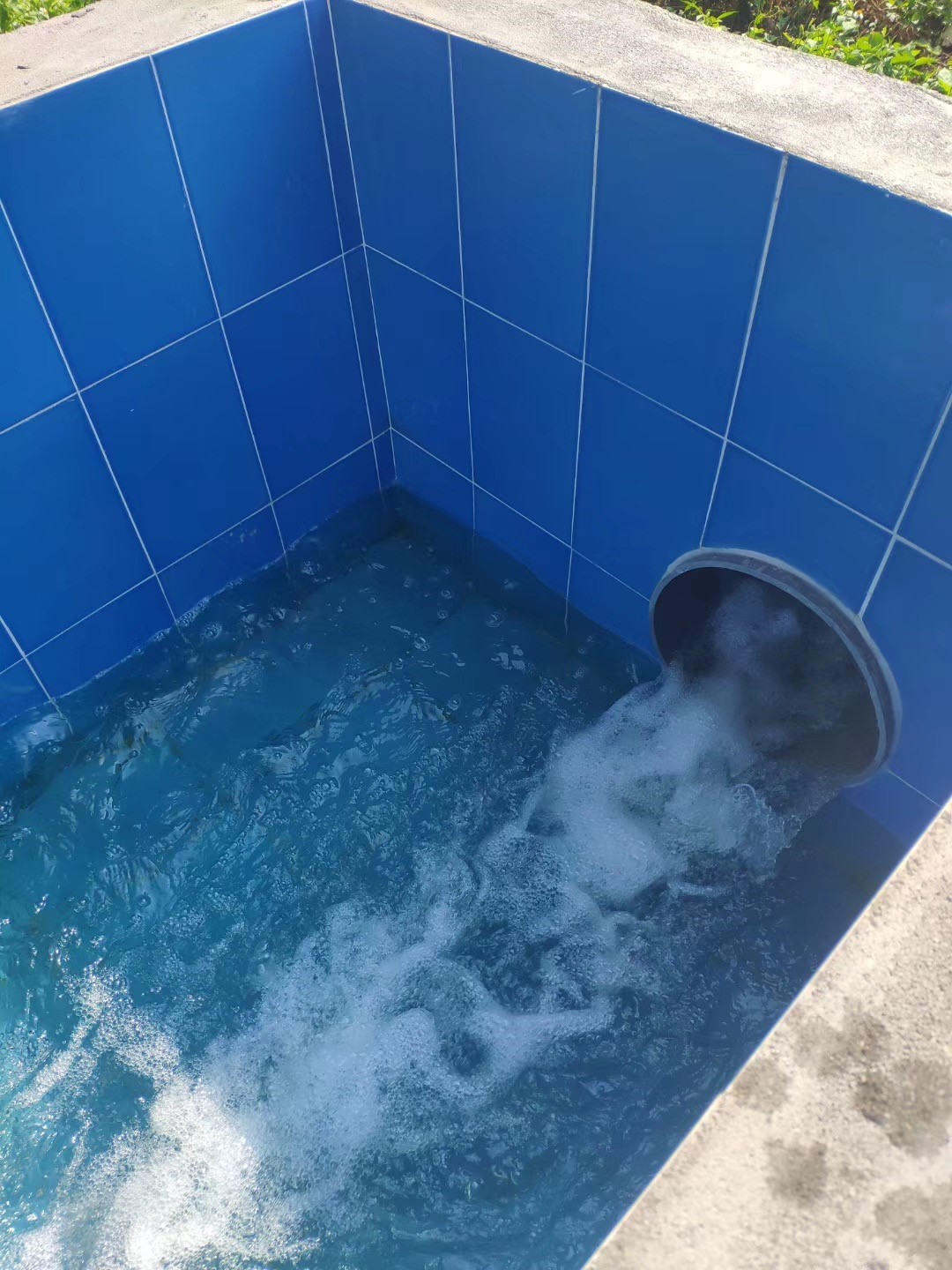

Outflow Discharged

2.  Techase Special Multi Plate Screw Press for River Lake Silt

2.1 Techase takes Multi Plate Screw Press as its core equipment. The process can be effectively coupled with sludge dredging, and has the advantages of rapid dewatering of the sludge, greatly saving the land area for sludge treatment, and low management costs. The equipment is easy to load and relocate. It can be used as a mobile processing platform and a shipboard platform. The equipment is self-sealing and has low requirements for the site. For the project which limits to land use and needs to work on water platform, especially long river project that requires many relocations, multi plate screw press has obvious advantages.

Techase Multi Plate Screw Press

Techase Multi Plate Screw Press for River Lake Silt

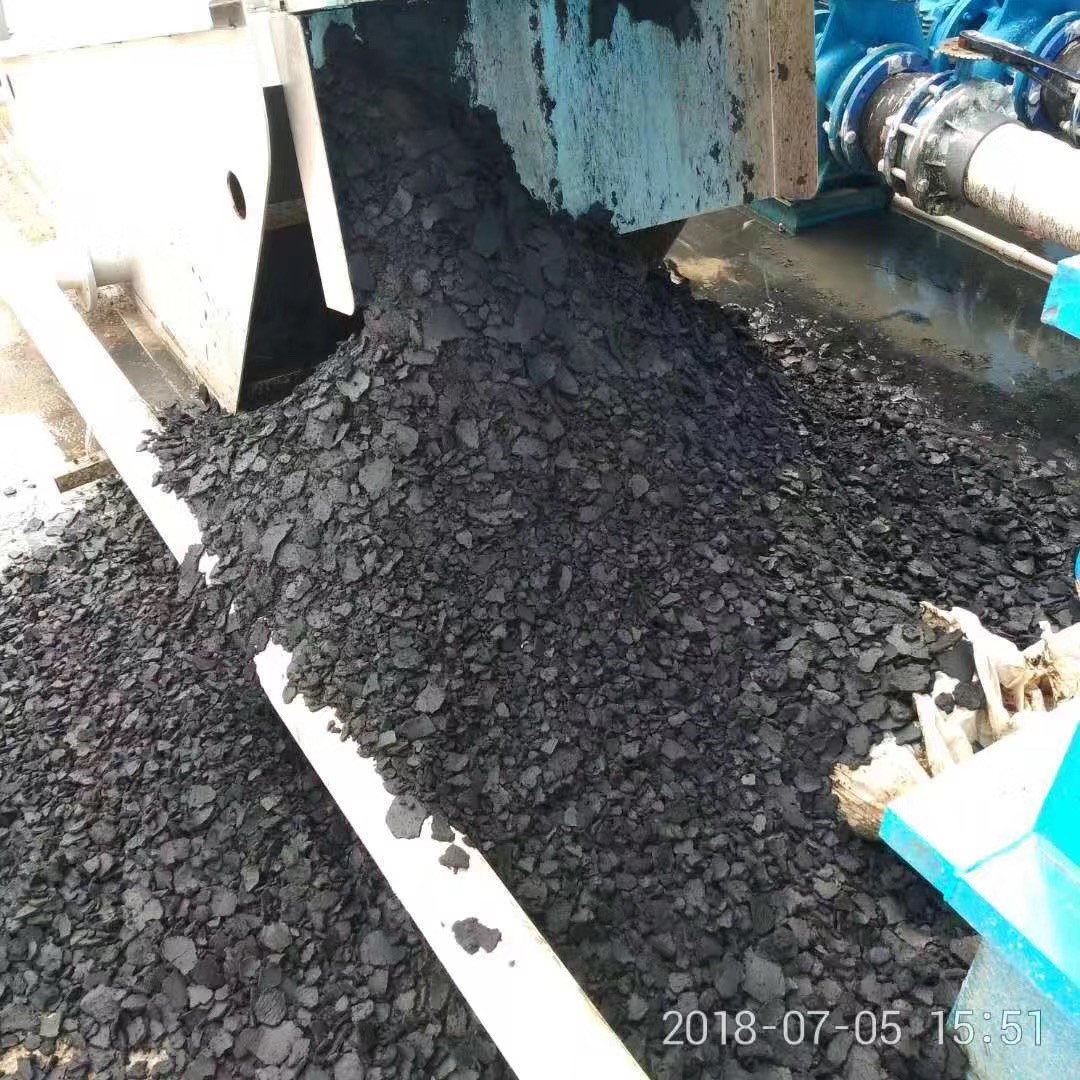

Sludge Cakes Discharged
